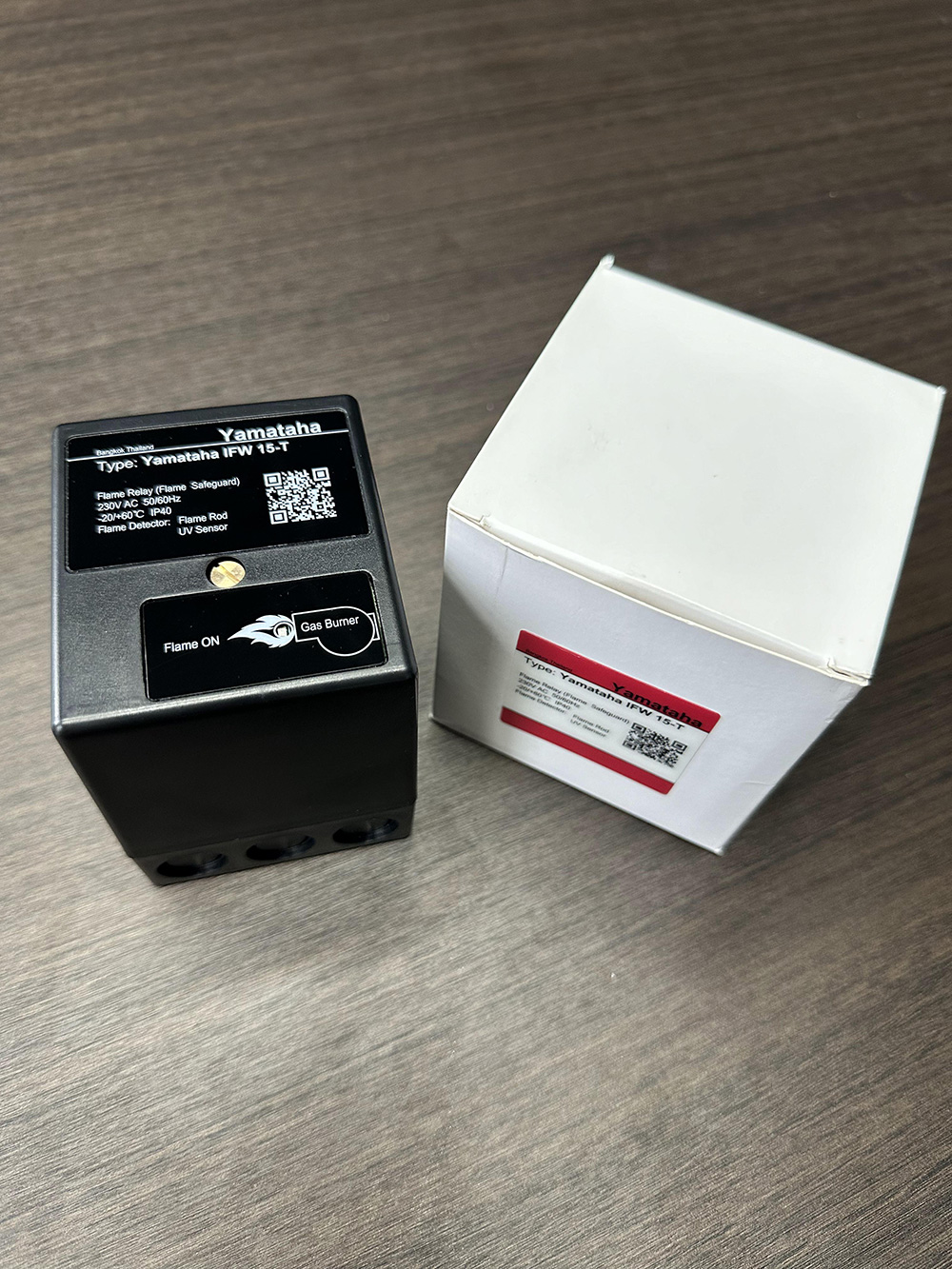

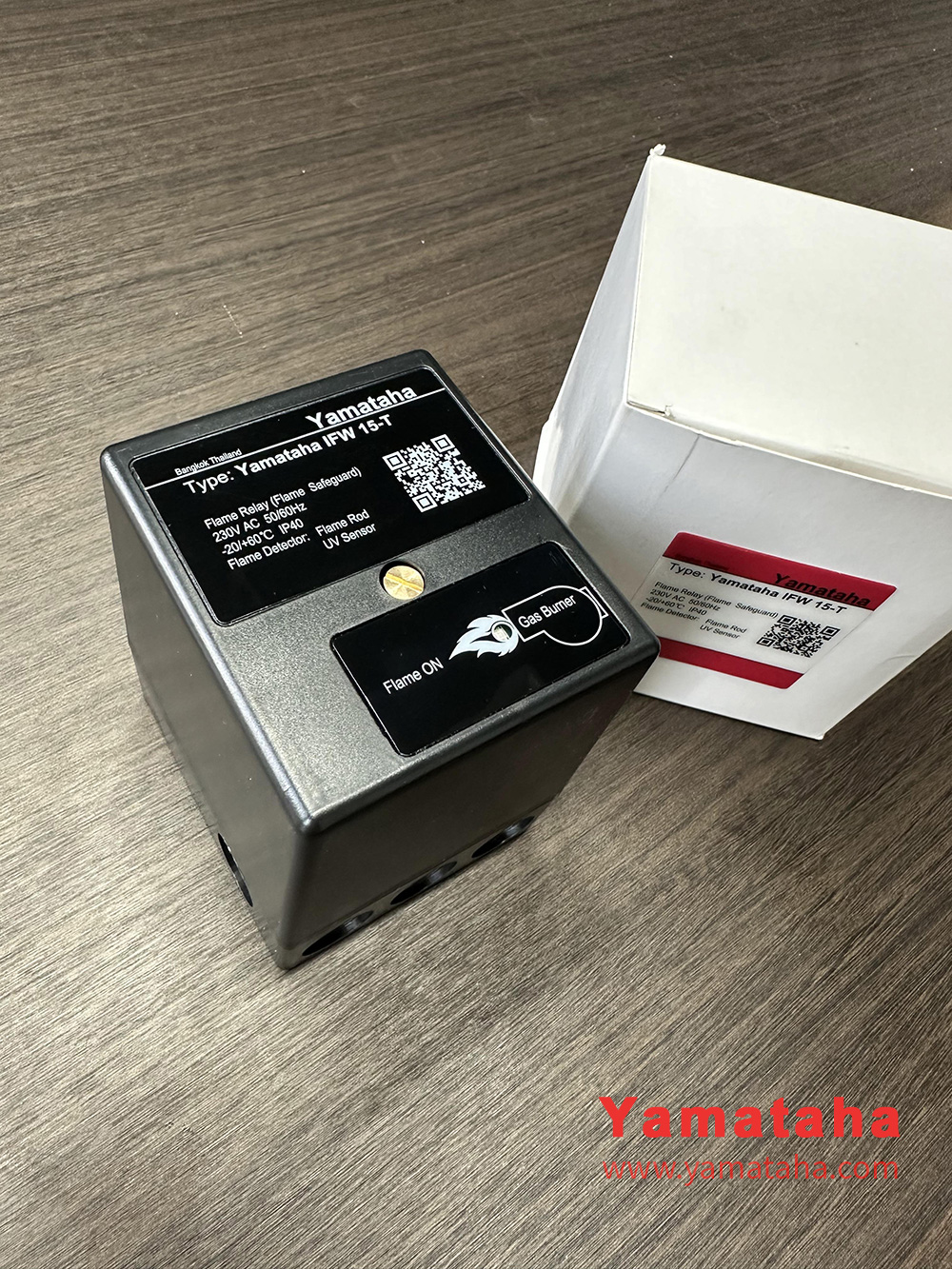

Yamataha IFW 15-T

Flame Relay(Flame Safeguard): Yamataha IFW 15-T
Type型　番: Yamataha IFW 15-T

Multi Input sensor: Flame Rod or UV Sensor (UVS 10 Series)
Operating voltage:
220-230 VAC + 10/-15%,50/60 Hz
Power consumption: 12 VA
Sensor curent: i>1μA DC
Output signal:
Potential free contacts, one NC, one NO contact
Contact rating: max. 2 A
Flame signal: lamp in device
Ambient temperature: –4 °F to 140 °F
(–20 °C to +60 °C) IP40
Cable gland: Five openings for external wire
connection
Terminals: 2 x AWG 16 (2 x 1.5 mm )
Mounting position: any
Weight: 0.45 kg (0.99 Ibs)
Dimension Box Size: L95xW94xH104mm
