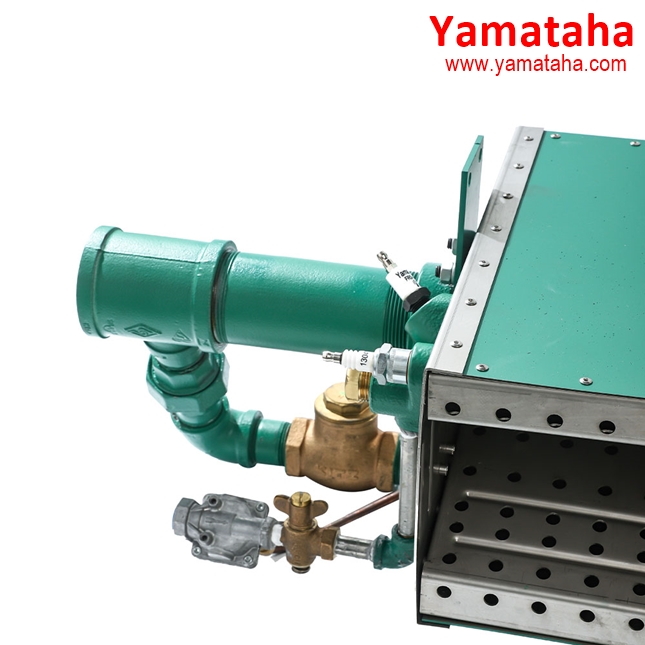

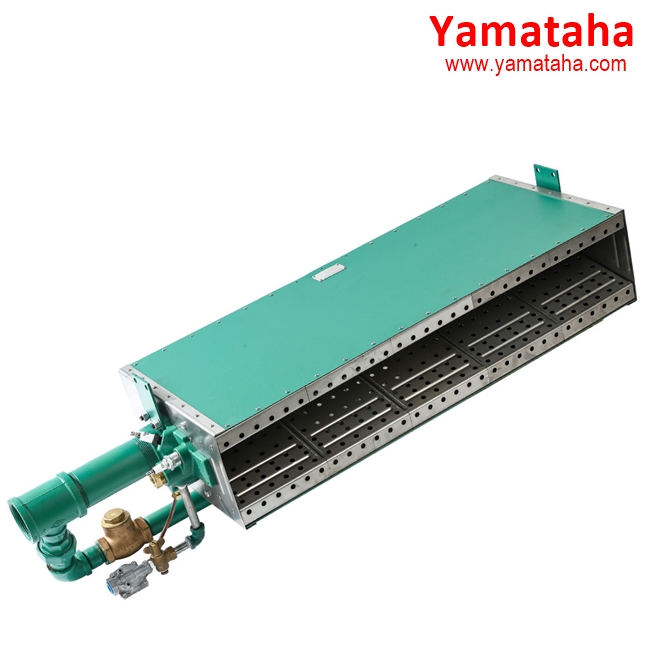

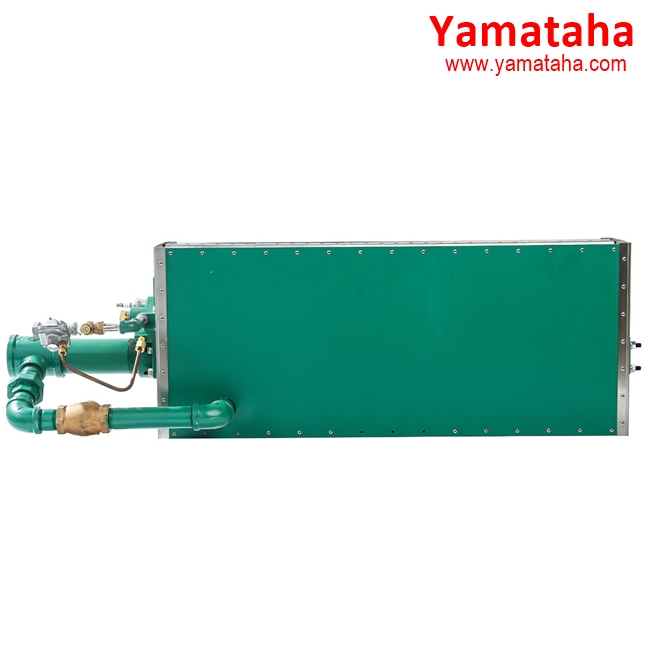

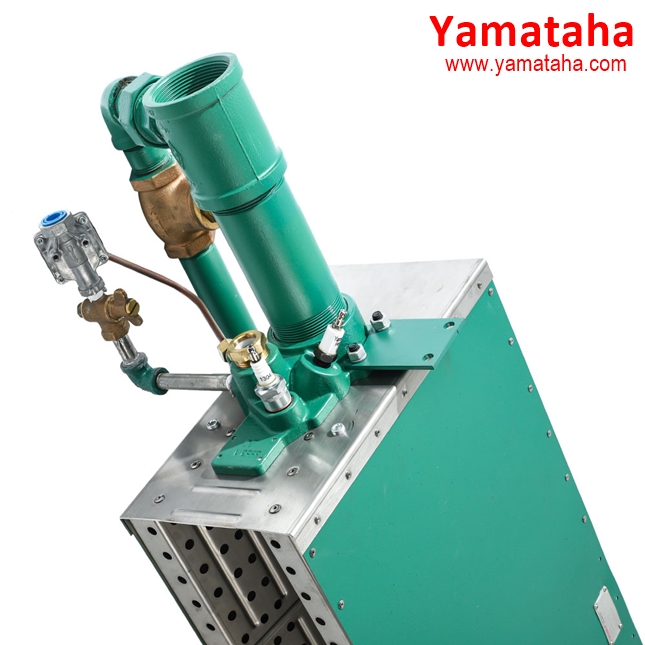

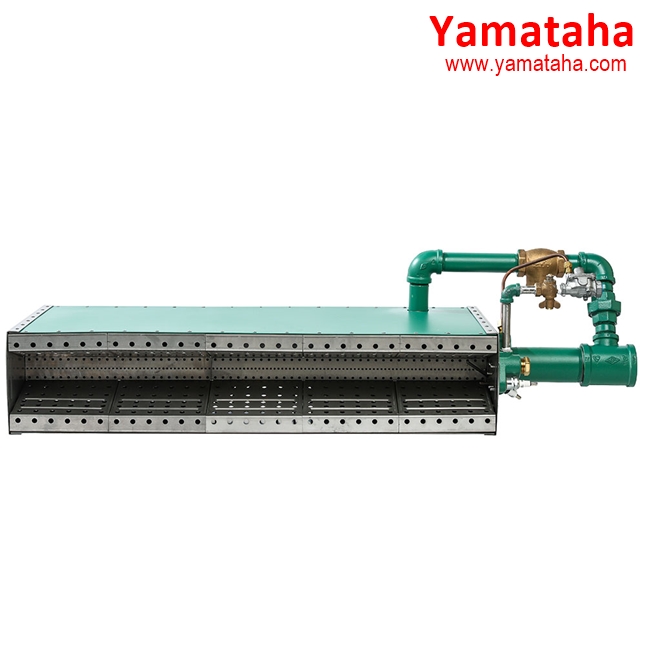

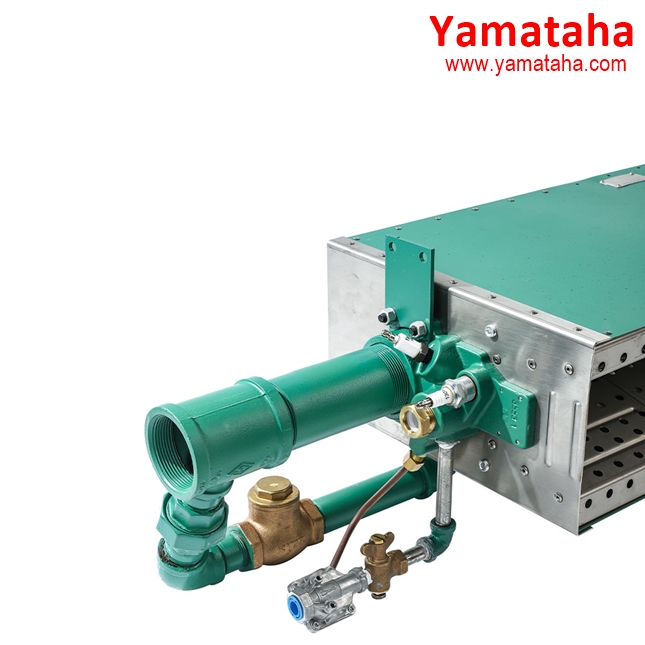

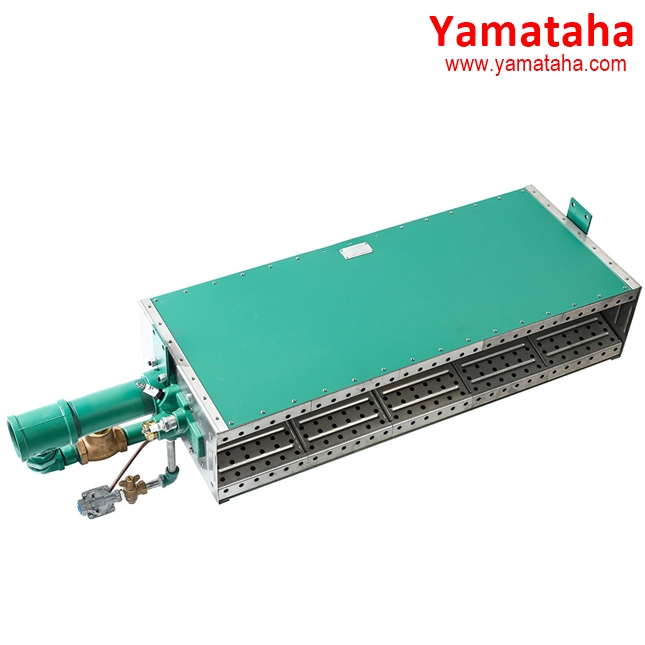

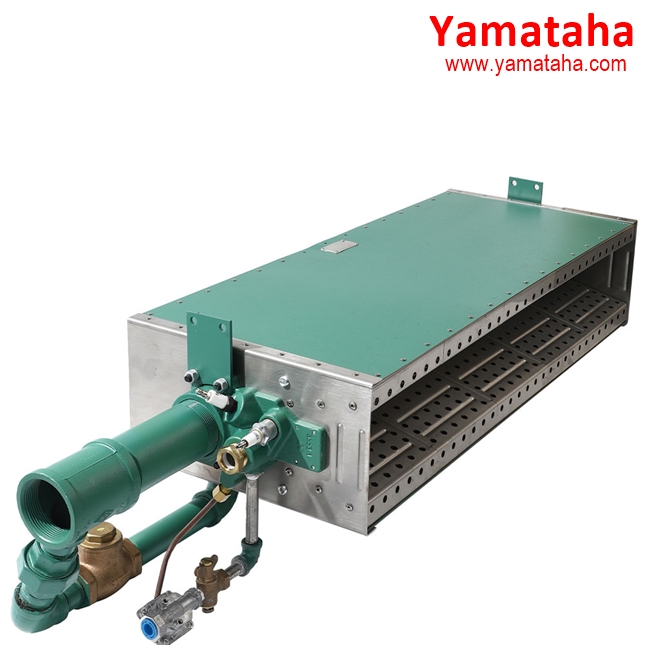

Yamataha 200RAH (DCM-50)
- AirHeat Burners: Yamataha 200 RAH, Yamataha DCM-50
- Type:Yamataha 160 RAH, Yamataha DCM-40
- Fire Dimension: W765 x H162 mm
- 586~733kW/h = 500,000Kcah/h = 2,000,000Btu/h
- Max Temperature 400℃,750℉
- L.P.G(Propane,Butane) Pressure Range:20~28mbar,200~280mmAq,2~2.8kPa,8~11″WC
- LNG(Natural) Pressure Range:35~40mBar,350~400mmAq,3.5~4kPa,14~16″WC
- Blower Fan(MS-751): 0.75kW,3Phase, 380V, 2800rpm,1.8A,0.7kPa,7mBar,2.8″WC, 23m³/min(1380m³/h)
- Blower Fan 2 Specification(MF-750): 0.75kW,3Phase, 380V, 2860rpm,1.73A,1.1kPa,11mBar,2.8″WC, 22m³/min
- Brand: Yamataha
