Yamataha USB-RESDO
Yamataha USB-RESDO Data Download Cable
- Yamataha USB-RESDO Data Download Cable
- Applications: Parameter settings and changes for
- Resideo controllers:
- Resideo S4965 Series:
- Resideo S4965V3075, Resideo S4965V3208, Resideo S4965V2131B
- Resideo S4802 Series:
- Resideo S4802D1001, Resideo S4802D1019
- Resideo S4702 Series:
- Resideo S4702D1003, Resideo S4702D1011, Resideo S4702D1029
- Resideo S4702H1005, Resideo S4702H1013
Download Manual
Yamataha PM10-F
Yamataha PM10-F
- Ignition Rod
- Type: PM10-F
- Material: Kanthal A1
- Max temperature: 1400’C
- Applications: Ignition Pilot Gas Burner
- Brand: Yamataha
Download Manual
Yamataha PM10-I
Yamataha PM10-I
- Ignition Rod
- Type: PM10-I
- Material: Kanthal A1
- Max temperature: 1400’C
- Applications: Ignition Pilot Gas Burner
- Brand: Yamataha
Download Manual
Yamataha A1053UR
Yamataha A1053UR
Exclusive cable – Dedicated Cable
Model : A1053UR
Brand : Yamataha
Made in Japan
Application Controller Yokogawa:
YS1310 Series, YS1350 Series, YS1360 Series, YS1500 Series, YS1700 Series, YS110 Series, YS80 Series Rack Instruments, YS150 Series, YS170 Series, YS1360 Series
Download Manual
Yamataha 3BVM-A
Yamataha 3BVM-A
Automatic Butterfly Valve
Type : 3BVM-A
item code : 101248
Max Operating Pressure : 35kPa(5PSI,350mbar)
Connection size : 3/4″
Non-Beveled Disk 360° Rotation
Made in USA
Brand : Yamataha
Download Manual
Yamataha Butterfly Valves Standard Manual
Yamataha ZE14-A1-3.5-60
Yamataha ZE14-A1-3.5-60
- Ignition Rod : Yamataha ZE14-A1-3.5-60
- Size : M14 x A1-3.5mm L=60mm
- Input Voltage : 40 kV minimum
- Material : Kanthal A1 , Alumina body
- Circumstances temperature : -100 ‘C to 1450’C
- Applications: Ignition Plug(Spark)Gas Burner Compact or Gas Burner
Download Manual
Yamataha ZE14-12-66
Yamataha ZE14-12-66
Flame rod : Yamataha ZE14-12-66
Size : M14x1.25mm
Input Voltage : 40 kV minimum
Material : Kanthal A1,Alumina body
Circumstances temp. : -100 ‘C to 1450’C
Download Manual
Yamataha-10002219-X
Yamataha-10002219-X
- Ignition Spark(Plug): Yamataha 10002219-X
- Thread Size : 1/2″
- Flame Rod : OD5mm
- X : Length can be customized by customers.
- Input Voltage: 40 kV minimum
- Material: Kanthal A1,Alumina body
- Circumstanes temperature : -100 ‘C to 1450’C
- Applications: Ignition Plug(Spark)Eclipse Gas Burner Compact or Gas Burner
Download Manual
Yamataha Sawtooth Joint (3.5mm)
Yamataha Sawtooth Joint (3.5mm)
Sawtooth Joint
Size: 3.5mm
Brand: Yamataha
Application:
-
Used as a connector joint in industrial gas burner systems.
Download Manual
Yamataha Joint 10014903 (3.2mm)
Yamataha Joint 10014903 (3.2mm)
Joint: Yamataha Joint 10014903 (3.2mm)
Type:10014903 (3.2mm)
Brand:Yamataha
Application:
-
Used as a connector joint in industrial gas burner systems.
-
Suitable for connecting flame rods, ignition electrodes, or small gas tubing.
Download Manual
Yamataha GJ-1602L
Yamataha GJ-1602L
Flame Rod: YAMATAHA GJ-1602L
Input Voltage: 40 kV minimum
Material: N80,Alumina body, stainless steel
Circumstances temperature : -100 ‘C to 1450’C
Applications: burner system needs a spark to light
Download Manual
Yamataha C14xL210
Yamataha C14xL210
- Ignition Rod: Yamataha C14xL210
- Yamataha C14xL210
- Ceramic size: OD14 x L210
- Screw: 1/2” NPT x 1.75
- Max Voltage:50 kV minimum
- Material:Kanthal A1,
- Circumstanes temperature : -100 ‘C to 1450’C
Download Manual
Yamataha C14xL140
Yamataha C14xL140
- Ignition Rod: Yamataha C14xL140
- Yamataha C14xL140
- Ceramic size: OD14 x L140
- Screw: 1/2” NPT x 1.75
- Max Voltage:50 kV minimum
- Material:Kanthal A1,
- Circumstanes temperature : -100 ‘C to 1450’C
Download Manual
Yamataha 1X-X with Yamataha 14891
Yamataha 1X-X with Yamataha 14891
- Ignition Rod: Yamataha 1X-X with Yamataha 14891
- Yamataha 1X-X
- Size : M21x1.5mm L600
- Input Voltage:40 kV minimum
- Material:Kanthal A1,Alumina body
- Circumstanes temperature : -100 ‘C to 1450’C
- Yamataha 14891
- Size: OD8mm L=With Burner Size mm
- Input Voltage:40 kV minimum
- Material:Kanthal AF,Alumina body
- Circumstanes temperature : 25 ‘C to 1450’C
Download Manual
Yamataha SVP-40
Yamataha SVP-40
Automatic Liner Valve
Model: SVP-40
Max inlet Pressure : 35kPa (5PSI,350mbar)
Connection size : DN40 (Rc1.1/2″)
Main Usage : For adjustment of gas flow rate.
For upper limit of gas line.
Download Manual
Yamataha SVP-20,25,40,50,80 Standard Manual
Yamataha SVP-25
Yamataha SVP-25
Automatic Liner Valve
Model: SVP-25
Max inlet Pressure : 35kPa (5PSI,350mbar)
Connection size : DN25 (Rc1″)
Main Usage : For adjustment of gas flow rate.
For upper limit of gas line.
Download Manual
Yamataha SVP-20,25,40,50,80 Standard Manual
Yamataha SVP-20
Yamataha SVP-20
Automatic Liner Valve
Model: SVP-20
Max inlet Pressure : 35kPa (5PSI,350mbar)
Connection size : DN20 (Rc3/4″)
Main Usage : For adjustment of gas flow rate.
For upper limit of gas line.
Download Manual
Yamataha SVP-20,25,40,50,80 Standard Manual
Yamataha USB to RS485
Download Manual
Support LabVIEW Modbus library(Modbus RTU/ASCII)
Yamataha USB to RS485 driver download
Yamataha USB to RS485
Industrial Adapter RS485
Type: Yamataha USB to RS485
Support LabVIEW Modbus library(Modbus RTU/ASCII):
- Support NI CompacRIO Linux Real-Time System: USB to RS485
- Os System Support: windows XP,7,8,10, Linux, Ni Linux Real-Time
- With isolation, photoelectric transmission
- Baud rate range: 2400,4800,9600,19200,38400,57600
- Data bits:7,8
- Parity: Even, Odd, None, Mark, Space
- Stop bits: 1,2
Feature of product:
- With usb esd dedicated protection chip to prevent interference from dropping
- Using American industrial grade rs-485 chip
- Adopt the industry’s most stable FT232RL
- With usb line we can recover fuse
- With 200mA auxiliary power output, Input and output are fully isolated
- Maximum connection distance: 1200 meters (when the baud rate is 9600)
- RS485: T/R-, T/R+
- Auxiliary power output: VCC(5V, Max 200mA), GND
Warranty: 2 Years
Brand: Yamataha
Yamataha SLP-SMART-08
Download Manual
Yamataha SLP-SMART-08 Driver.zip
Yamataha SLP-SMART-08
USB Loader Cable
Type: Yamataha SLP-SMART-08
Dedicated Cable, MAINTENANCE PORT
Appilcation:Upload/download parameters from the Yokogawa of temperature controllers with USB 2.0 to pc computer
Recorder Yokogawa temperature controller’s data to pc computer
Or Used to copy the Yokogawa parameters of the old parameters to the new temperature Controller’s parameters
Panel LED: PW(Usb connected to PC light power on), Tx (Transmit Data), Rx (Receive Data)
With isolation, photoelectric transmission
Support the following Yokogawa’s products:
UT32A, UT35A, UT33A, UT52A, UT55A, UT75A, UP32A, UP35A, UP55A, UM33A, UT32A-D, UT32A/MDL, UT35A/MDL, UT52A/MDL, UT55A/MDL
Warranty: 2 Years
Brand: Yamataha
Yamataha ZE14-A1-3.5
Yamataha ZE14-A1-3.5
- Ignition Spark(Plug): ZE14-A1-3.5
- Size : M14 x 1.25 x L600
- Input Voltage:40 kV minimum
- Material: Kanthal A1,Alumina body
- Circumstanes temperature : -100 ‘C to 1450’C
- Brand: Yamataha
Download Manual
Yamataha FRS-4-6 (75mm)
Yamataha FRS-4-6
- Ignition Spark(Plug): FRS-4-6
- Size : 1/4″ NPT x L75
- Input Voltage:40 kV minimum
- Material: Kanthal A1,Alumina body
- Circumstanes temperature : -100 ‘C to 1450’C
- Brand: Yamataha
Download Manual
Yamataha 8BVM-A
Yamataha 8BVM-A
- Automatic Butterfly Valve
- Type : 8BVM-A
- item code : 101251
- Max Operating Pressure : 35kPa(5PSI,350mbar)
- Connection size : 2″
- Non-Beveled Disk 360° Rotation
- Made in USA
- Brand : Yamataha
Download Manual
Yamataha Butterfly Valves Standard Manual
Yamataha 6BVM-A
Yamataha 6BVM-A
- Automatic Butterfly Valve
- Type : 6BVM-A
- item code : 101250
- Max Operating Pressure : 35kPa(5PSI,350mbar)
- Connection size : 1-1/2″
- Non-Beveled Disk 360° Rotation
- Made in USA
- Brand : Yamataha
Download Manual
Yamataha Butterfly Valves Standard Manual

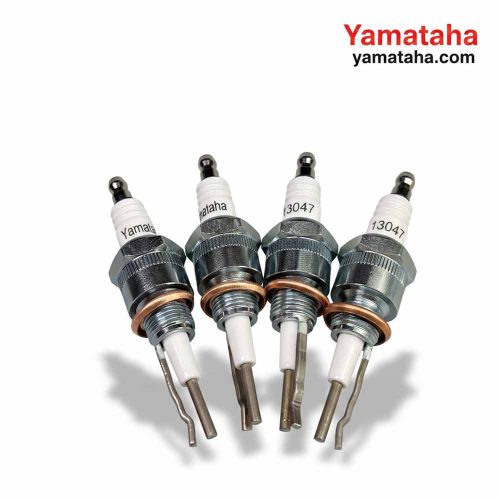

Yamataha-13047
Yamataha-13047
- Ignition Rod: Yamataha 13047
- Size: M14x1.25mm L=45mm
- Input Voltage:40 kV minimum
- Material: Kanthal A1 made in sweden
- Alumina body
- Circumstanes temperature : -100 ‘C to 1350’C
- Applications: Ignition Plug(Spark)Gas Burner Compact or Gas Burner
- Brand: Yamataha
Download Manual
Yamataha-10019728
Yamataha-10019728
- Ignition Spark(Plug): Yamataha 10019728
- Size: M14x1.25mm L=70mm
- Input Voltage:40 kV minimum
- Material:Kanthal A1,Alumina body
- Circumstanes temperature : -100 ‘C to 1450’C
- Applications:Ignition Plug(Spark)Eclipse Gas Burner Compact or Gas Burner
- Brand: Yamataha
Download Manual
Yamataha-23045
Yamataha-23045
- Ignition Spark(Plug)
- Type : 23045
- Size: M14x1.25mm
- Input Voltage:40 kV minimum
- Material:N80,Alumina body
- Circumstanes temperature : -100 ‘C to 1450’C
- Applications:Flame Rod Eclipse Gas Burner Compact or Gas Burner
- Brand: Yamataha
- Made in U.S.A
Download Manual
yamataha-14891
Yamataha-14891
Flame Rod : Yamataha 14891
Size: OD8mm L=With Burner Size mm
Input Voltage:40 kV minimum
Material:Kanthal AF,Alumina body
Circumstanes temperature : 25 ‘C to 1450’C
Applications:Flame Rod Eclipse Gas Burner Compact or Gas Burner
Brand: Yamataha
Made in U.S.A
Download Manual

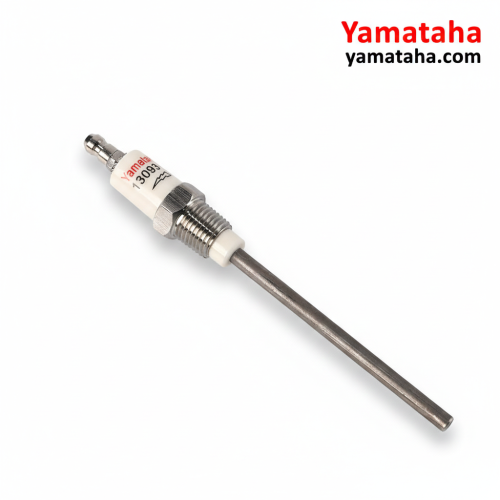

Yamataha 13093-3
Yamataha-13093-3
Flame Rod
Type : 13093-3
Size: M1/4″x1.5mm L=76mm
Input Voltage:40 kV minimum
Material:Kanthal AF,Alumina body
Circumstanes temperature : 25 ‘C to 1450’C
Applications:Flame Rod Eclipse Gas Burner Compact or Gas Burner
Brand: Yamataha
Made in U.S.A
Download Manual

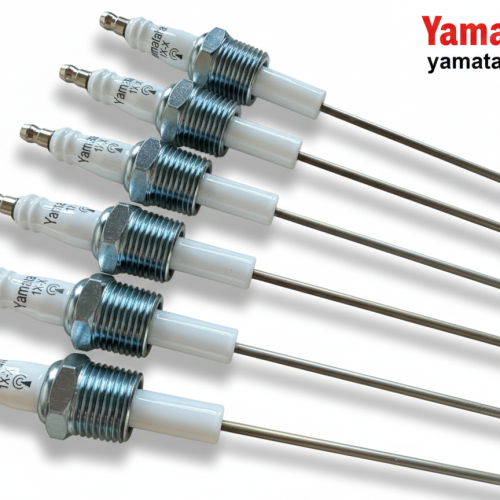

Yamataha 1X-X
Yamataha-1x-x
- Ignition Spark(Plug): 1X-X
- Size : M21x1.5mm L600
- Input Voltage:40 kV minimum
- Material: Kanthal A1,Alumina body
- Circumstanes temperature : -100 ‘C to 1450’C
- Brand: Yamataha
Download Manual

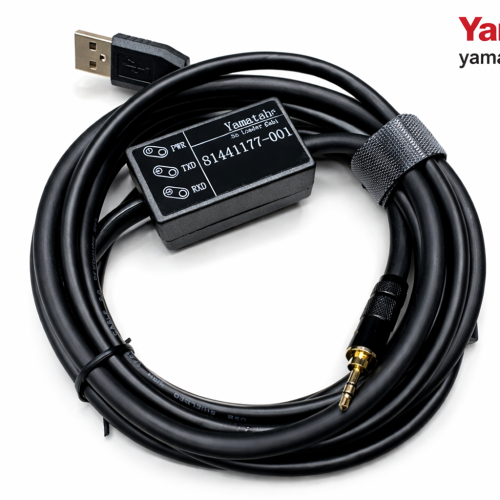

Yamataha 81441177-001
Download Manual
You can download the driver here.
Yamataha 81441177-001 driver download
Yamataha 81441177-001
USB Loader Cable
Type: Yamataha 81441177-001
USB Loader Cable: Yamataha 81441177-001
Appilcation: Upload/download parameters from the Azbil of temperature controllers with USB 2.0 to pc computer
Recorder Azbil temperature controller’s data to pc computer
Or Used to copy the Azbil parameters of the old parameters to the new temperature Controller’s parameters
Panel LED: PW(Usb connected to PC light power on), Tx (Transmit Data), Rx (Receive Data)
With isolation, photoelectric transmission
Support the following products:
azbil Temperature Controller Series: SDC15,SDC25/25,SDC35/36,R35,SDC45A/46A,SDC45V/46V,DCP551,SDC15M,C1M
azbil Burner Controller Series: R25/R35, AUR450C,AUR890F/G
azbil CMC10A,azbil Magnew 3000 PLUS
azbil Gas Flow Meter
azbil CMC15G Series Controller
azbil SPG Sapphire Diaphragm Gauges SPG5/6/7/8
Warranty: 2 Years
Brand: Yamataha
Yamataha CMB 001
Download Manual
You can download the driver here.
– Yamataha CMB-001 driver download
– Shinko PCA1 Software and Usb-Driver

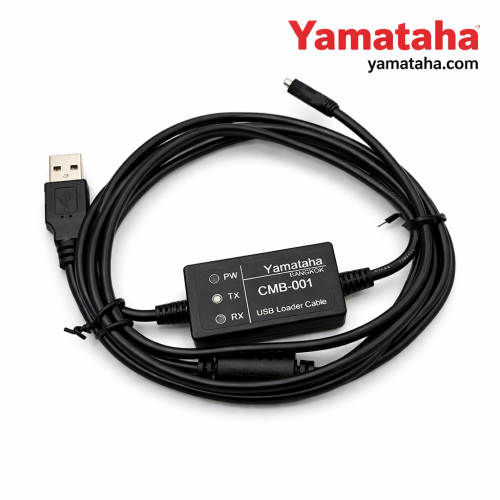

Yamataha CMB-001
USB Loader Cable
Type : Yamataha CMB-001
Appilcation: Upload/download parameters from the Shinko of temperature controllers with USB 2.0 to pc computer
Recorder Shinko temperature controller’s data to pc computer
Or Used to copy the Shinko parameters of the old parameters to the new temperature Controller’s parameters
Panel LED: PW(Usb connected to PC light power on), Tx (Transmit Data), Rx (Receive Data)
With isolation, photoelectric transmission
Support the following Shinko’s products:
Shinko PCA1, ACD-13A, ACR-13A, ACD-15A, ACR-15A,
BCx2 series, DSD-100/200, DSW-100/200, JCL-33A, PCB1, PCx-700
Brand: Yamataha
Warranty: 2 Years
Yamataha PCO-200
Download Manual
You can download the driver here.
Yamataha PCO-200
USB IR-Adapter interface(to PC Computer): Yamataha PCO-200
Opto-Adapter PCO 200
USB to PC Type
Appilcation: Upload/download parameters from the krom//schroder controllers with USB 2.0 to pc computer
Longth: 3m =9.84ft =118inches =3000mm =300cm
Application to the Kromschroder’s following product:
IC 40 Actuator
UVC UV sensor
BCU 370 Burner Controller
BCU 440,460,BCU 460-PB,460 L,465,465-PB,465T,480,BCU 480-PB Burner Controller
BCU 560,BCU 565,BCU 570,BCU 580 Burner Controller
FCU 500,FCU 505 Burner Controller
PFA 700,710 Burner Controller
PFU 760,780 Burner Controller
PFU 778,798 Burner Controller
- Brand: Yamataha
- Warranty: 2 Years
